neon led strip 12v/24v

neon led strip 12v/24v
Name: DC12V/ 24V LED neon light strip
LED type: 2835
LED quantity: 120Leds/m
Working voltage: DC12V/ DC24V
Connector type: 2-pin wire
Power: 8-12W/m
Waterproof rate: IP67 waterproof (can be used outdoors)
Beam angle: 180°

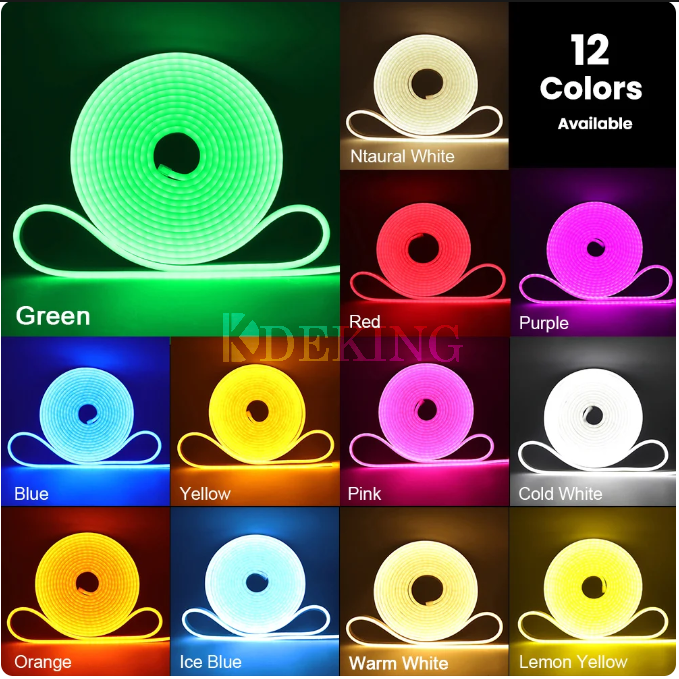

Light color: Cold white, warm white, natural white, blue, ice blue, green, golden yellow, red, pink, purple
Color temperature: Warm white 2700-3500K, cold white 6000-6500K
Size(W*H): About 5~6mm(W) * 11~12mm(H)
Strip length: 50cm, 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, 13m, 14m, 15m, 16m, 17m, 18m, 19m, 20m
Beam Angle:180 degrees

Cut Length: DC 12V - Every 2.5cm(0.98in) , DC 24V - Every 5cm(1.96in)
Is dimmable: Yes (No dimmer)
Operation temperature: -10℃-+60℃

Storage temperature: -10℃-+60℃

Lifespan: 50,000 Hours
Application: Advertising signs, letter sign, outlines, display signage, bed, table, desk, car, wall, home decoration etc,.
  • ce
  • 2year
  • rohs
  • us
  • dc24
  • fc
  • ra89
  • ip65

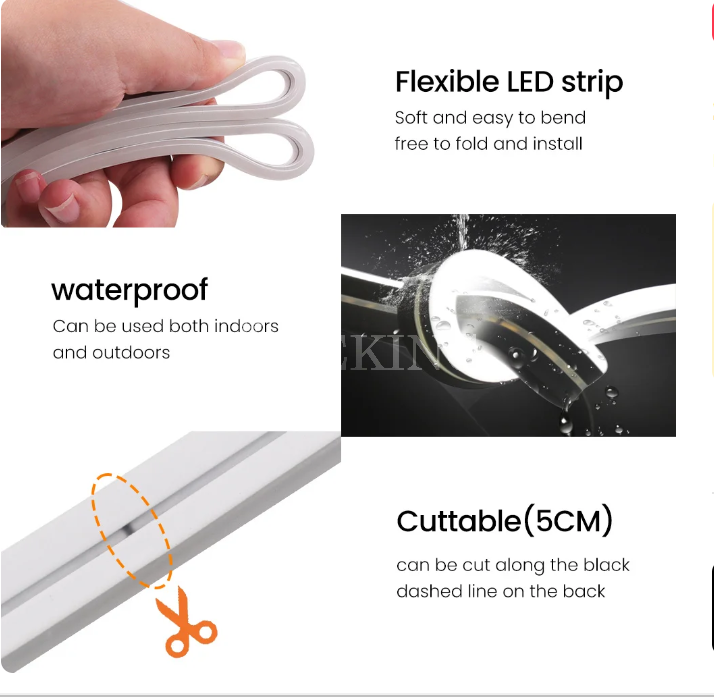

Product Images

Description

* Only LED light strip be sale, other accessories like power supply, connectors, sticky glue and etc are not included.
* No double tape on the back, each 50cm neon strip come with 1pc clip.

* When you want the new color - natural white, lemon yellow, orange light, please contact customer service, thank you!

*DC24V led neon strip light below 10 meters,  or DC12V led neon strip light below 5 meters, with no voltage drop when powered at one end.

*Led noen strip light(DC24V 11m/12m/13m/14m/15m/16m/17m/18m/19m/20m) more than 10m requires two terminal power  supplies to ensure no voltage drop.

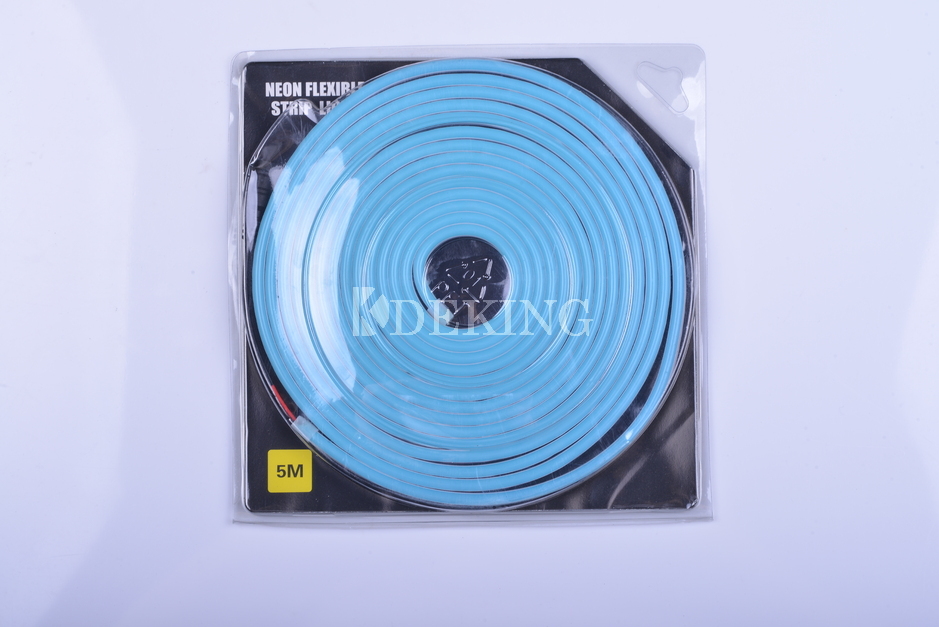

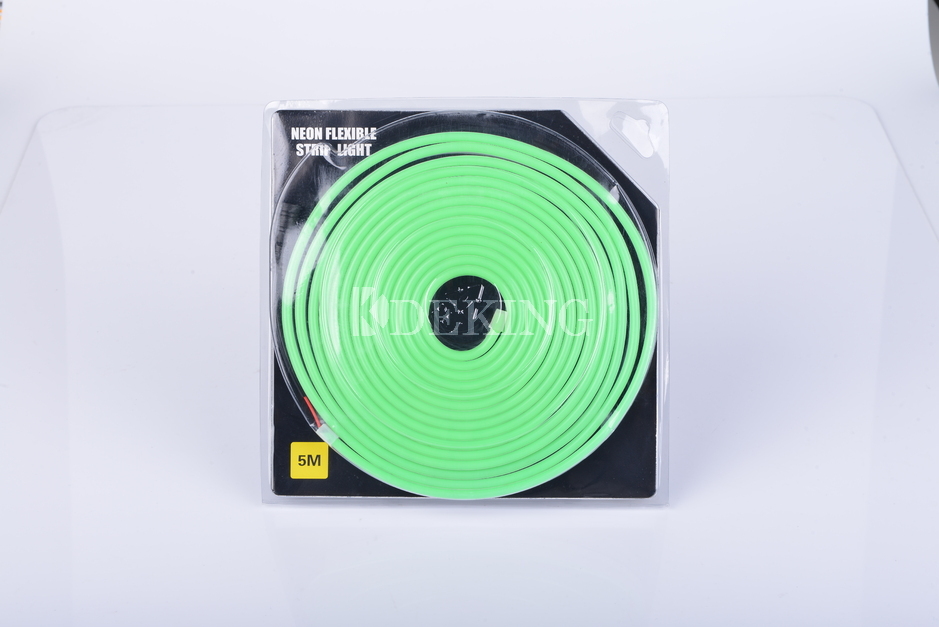

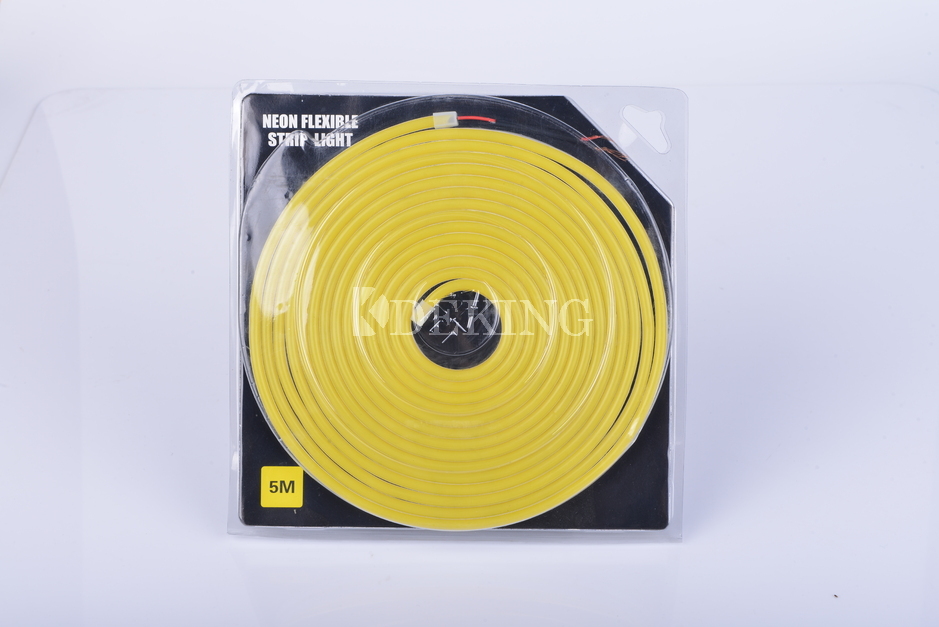

Package Includes:
1 x LED neon strip light (No power supply)5m

Product Applications

Specifications

Neon led strip
Parameter Name Parameter values
FPC width 10mm
Voltage 12V
CRI 90
Cutting Length 25mm
LED Type mulinsen
LEDs/m 320
Lumen 22lm/m
Efficiency 80lm/w
Power 14w/m
Size 10mm
CCT can be OEM
