High Brightness & Color Options
Uses SMD 2835/3535 chips (24–28 lm per LED, 540–565 lm/m); available in warm white (2700K), neutral white (4000K), cold white (6500K), or RGB.

Cuttable & Dimmable
Can be cut every 3 LEDs (50mm); compatible with dimmers (adjust brightness for ambiance).
  • 3year
  • ce
  • rohs
  • us
  • cut
  • dc12
  • dc24
  • fc
  • ra89
  • ip20

Description

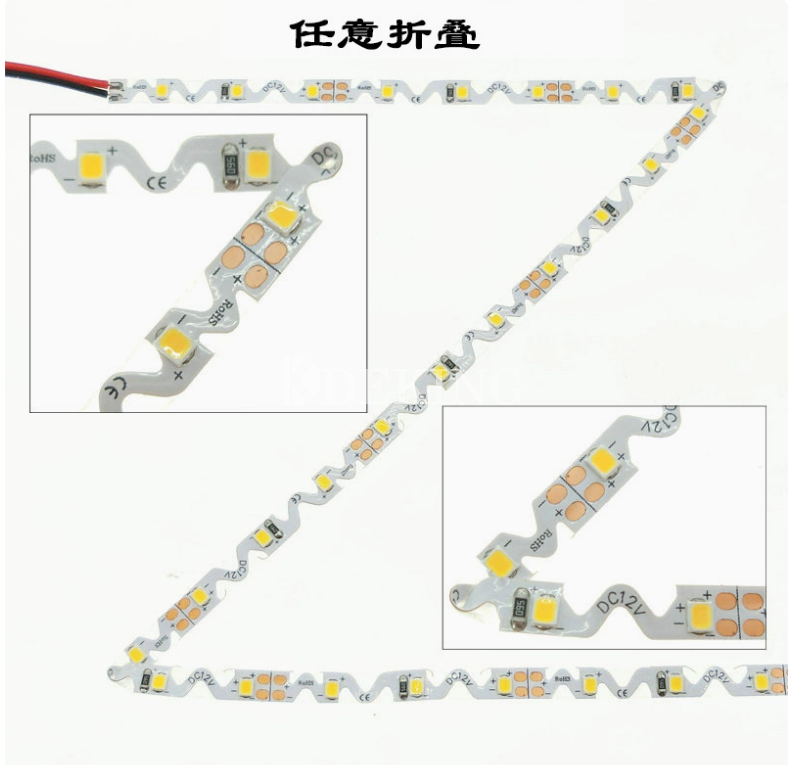

  • Flexible S-shaped Design
    • Unique zigzag PCB structure, allowing 90°+ bending for curves, corners, or custom shapes (ideal for signage/letter lighting).

  • Low Voltage & Safe
    • Operates at 12V DC (low voltage, safe for indoor/outdoor use; no overheating risk).

  • Durable & Long-Lasting
    • Double-sided copper PCB (excellent heat dissipation); lifespan >50,000 hours (light decay <3% after 5000h).

  • Easy Installation
    • 3M adhesive backing; optional waterproof versions (IP20/IP65) for different scenarios.

Specifications

Model No FPC width Voltage CRI Cutting Length LED Type LEDs/m Lumen Efficiency Power Size CCT
12v s led strip light 6mm 12V 90 2.5cm 3 60 1300lm/m 90lm/w 12w/m 6mm can be OEM
